Monitoring

Monitoring is what GridNMS does around the clock so you don’t have to. It checks that your devices are reachable, collects detailed metrics like traffic and CPU, and watches those metrics against thresholds you set — raising an event the moment something looks wrong. This page covers what gets monitored, how to read the data, and how to set up bandwidth thresholds.

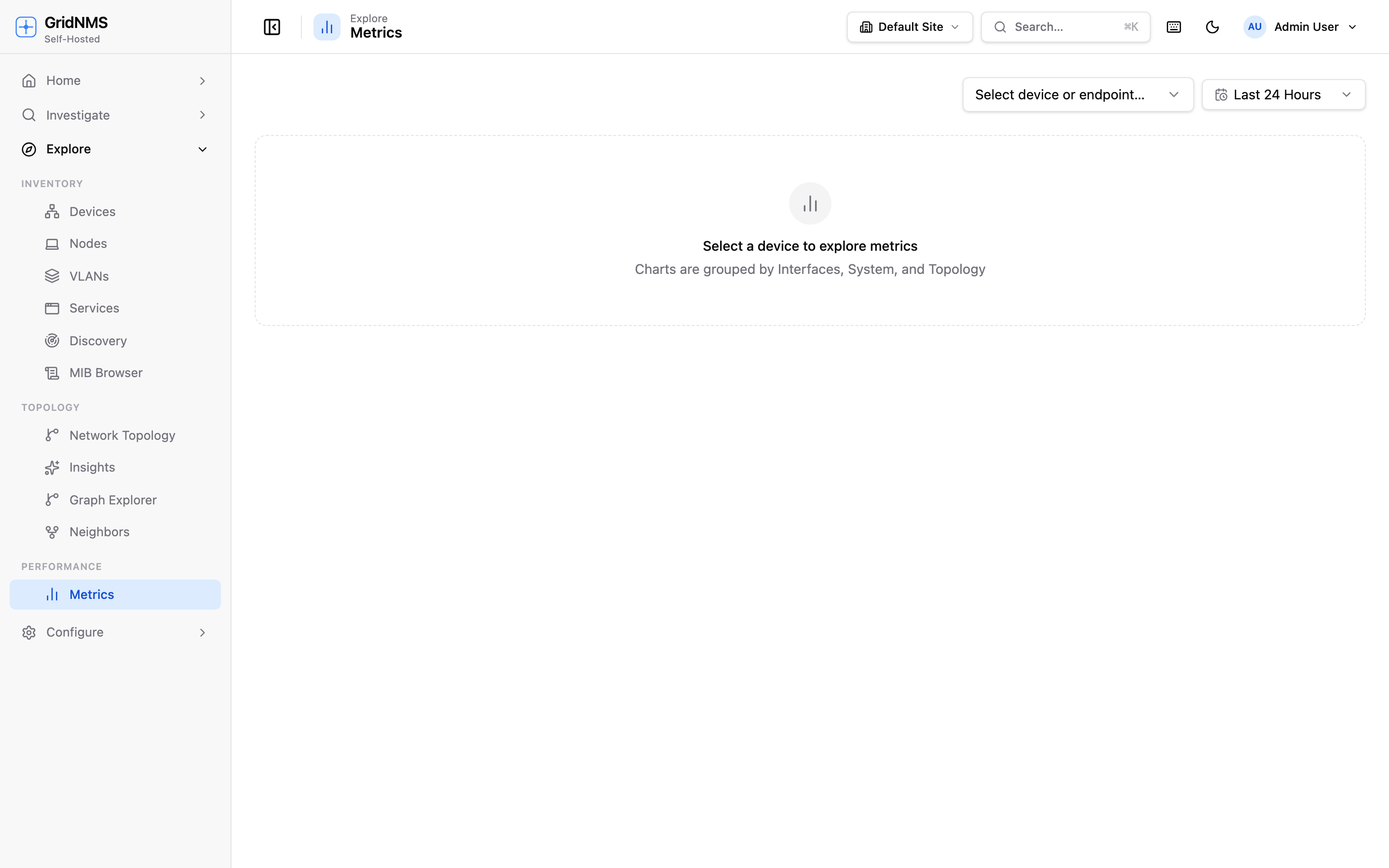

The Metrics page lets you pick a device and metric, choose a time range, and read the charts.

Two kinds of monitoring

GridNMS watches your devices in two layers:

1. Reachability checks — a regular “are you alive?” test of each device. This is what drives the Up / Down / Unknown status you see everywhere. A device that stops responding is marked Down and raises an event.
2. Metric collection — periodic gathering of detailed numbers from each device: interface traffic, CPU load, memory use, disk capacity, temperatures, and more, depending on what the device exposes.

For a deeper look at the mechanics, see How Monitoring Works.

Monitoring packs

You don’t configure each metric by hand. Instead, GridNMS uses monitoring packs — bundles of checks that are attached to a device class. When you set a device’s class (Router, Switch, Firewall, Access Point, and so on), it automatically inherits the right pack and starts collecting the metrics that make sense for that kind of device.

Because packs attach to classes and classes form a hierarchy, monitoring “just works” once a device has the correct class. A switch gets interface and port metrics; a server-style device gets CPU, memory, and disk; a wireless controller gets client and radio metrics — all without per-device setup.

Note

If a device isn’t reporting a metric you expect, the two usual causes are: it’s the wrong class, or it’s missing working SNMP/SSH credentials. Check both first.

The Metrics page

Open Metrics to explore the numbers GridNMS has collected.

1. Select a device — start typing its name or pick it from the list.
2. Select a metric — for example, an interface’s inbound/outbound traffic, CPU utilization, or memory usage.
3. Choose a time range — use the time-range picker to switch between the last hour, last day, last week, or a custom window.
4. Read the chart — the line chart plots the metric over your chosen range.

Reading the charts

• Time runs left to right. The most recent data is on the right edge.
• Hover over the line to see the exact value at a point in time.
• Traffic is usually shown in bits per second (e.g. Mbps); utilization metrics (CPU, memory, disk) are shown as a percentage.
• Gaps in a line mean GridNMS didn’t have data for that period — often because the device was unreachable or monitoring was paused.

Tip

Widen the time range to spot patterns: daily business-hours peaks, a steady upward creep in disk usage, or a device that resets every night. The dashboard’s metric panels show the same data — pin the charts you watch most often there.

Interface bandwidth thresholds

Beyond just graphing traffic, GridNMS can alert you when an interface crosses a bandwidth level you care about. This is how you find saturated uplinks before users start complaining.

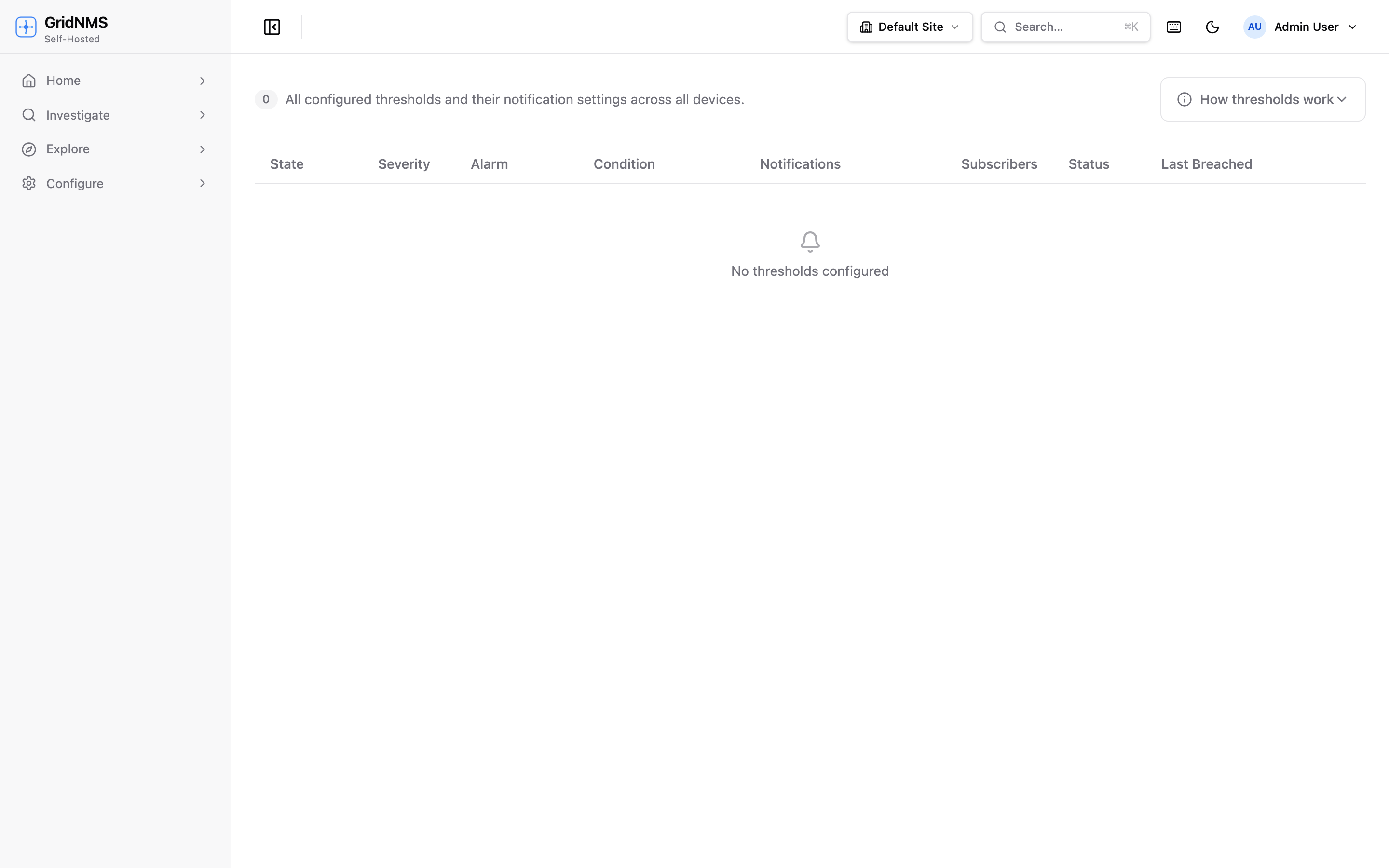

Bandwidth thresholds raise an event automatically when an interface crosses your set rate — and clear it when traffic falls back.

Creating a threshold rule

You can set a threshold from a device’s Interfaces tab or from the thresholds configuration page:

1. Pick the interface you want to watch.
2. Choose the direction — inbound, outbound, or both.
3. Set the rate that should trigger the alert (for example, 80% of the link speed, or a fixed value like 800 Mbps).
4. Choose the severity the resulting event should carry (see severity levels).
5. Optionally enable notification so the alert reaches your chosen endpoints, not just the events feed.
6. Save the rule.

What happens when a threshold is crossed

• When traffic rises above your threshold, GridNMS automatically raises an event at the severity you chose. It appears on the Events page and, if you enabled notification, is delivered to your endpoints.
• When traffic falls back below the threshold, GridNMS automatically clears the event — you don’t have to close it by hand. This keeps your events feed honest: an open bandwidth event means the link is busy right now.

Caution

Set thresholds with a little headroom and avoid alerting on brief spikes. A threshold that fires on every momentary burst creates noise. Aim for a level that indicates a sustained problem, like a link that’s genuinely running hot.

Good thresholds to start with

Interface	Suggested threshold
Internet / WAN uplink	75–85% of the contracted speed, in the relevant direction.
Core / distribution uplinks	80% of link speed, both directions.
Access-layer ports	Usually not worth a threshold individually — watch the aggregate uplink instead.

How monitoring feeds alerts

Everything monitoring collects can become an alert:

• A failed reachability check → a device down event.
• A crossed bandwidth threshold → an interface event (auto-cleared when it recovers).

All of these land on the Events & Alerts page and can be routed to people via Notifications.

Where to go next

• Understand the underlying mechanics in How Monitoring Works.
• Triage what monitoring raises on the Events & Alerts page.
• Set the right device class and credentials so packs collect correctly.
