Field Extraction

A raw log message is just a line of text. That makes it awkward to work with: to find every failed login from one address, you’d have to search for fragments of text and hope they line up. Field Extraction fixes that. It pulls the useful pieces out of a message — a source IP, a username, an action, an error code — and turns them into named fields you can search and alert on directly.

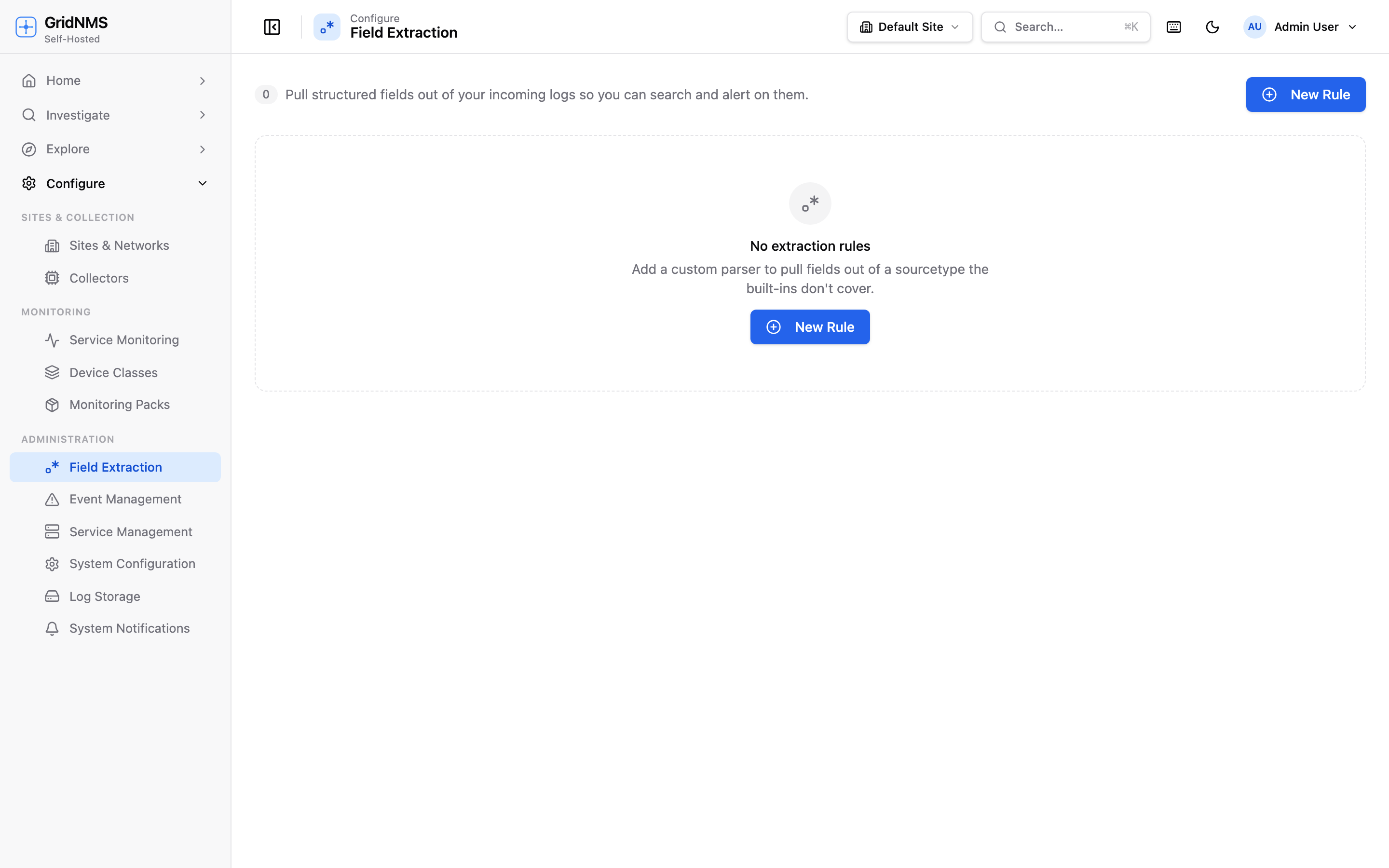

The Field Extraction page lists each extraction rule with its name, which log type it applies to, and the pattern it uses.

Why it matters

Compare the two ways of asking the same question:

• Without extraction: search the raw text of a firewall log and try to guess the exact wording around a blocked connection.
• With extraction: the source IP and action are their own fields, so you can ask directly for “all denies from this one address” or “every failure for the admin account.”

Once a message’s pieces are named fields, both Log Search and Detections become far sharper. A detection can group by source IP and fire when one address fails ten times — something fuzzy text matching can’t do reliably.

Note

You don’t need to set this up to get started. GridNMS extracts many common fields automatically, and search and the built-in detections work out of the box. Reach for custom extraction when you have a log format the built-ins don’t cover, or when you want field-level precision the automatic extraction doesn’t give you.

Where to find it

Open Configure → Field Extraction. The page lists every extraction rule with its name, the log type it applies to, and the pattern it uses. Each row has an on/off switch. Click a row to edit it, or New Rule to add one.

Creating an extraction rule

Click New Rule to open the editor.

1. Name — a label you’ll recognize, e.g. Firewall deny.
2. Log type — which kind of log this rule applies to. Use * to apply it to any log, or name a specific source (for example, a particular firewall or appliance type) so the rule only runs against logs from that gear. Scoping a rule to its log type keeps it from misfiring on unrelated messages.
3. Pattern — how to find the values you want to capture (covered below).
4. Event type — an optional standard label to tag matching logs with (for example, NETWORK_CONNECTION). Leave it blank if you don’t need it.
5. Enabled — whether the rule is active.

Click Save.

Writing the pattern

The pattern describes where the values live in the message and gives each one a field name. You name a piece of the message with the form (?<fieldname>…) — whatever that part of the line captures becomes a field called fieldname.

For example, a pattern that captures the user and the source address from a failed-login line names two fields: one for the user and one for the source IP. After the rule runs, those values are searchable as fields instead of being buried in the raw text.

Caution

A pattern with no named fields captures nothing useful. The editor warns you if your pattern has no (?<field>…) groups — add at least one so the matched values actually become fields.

GridNMS lines fields up for you

You don’t have to memorize one canonical name for every concept. If you name a field something natural like user, username, src, or sourceip, GridNMS maps it to the standard field everything else uses — so user and username both become the same searchable user field, and src, sourceip, or client_ip all become the same source IP field. The tester (below) shows you the standard name your capture will end up as, so there’s no guesswork.

Testing against a sample message

The editor has a built-in tester so you never have to save and hope.

1. Paste a real raw log line into the Test against a sample log box.
2. GridNMS applies your pattern live and shows the result:
   • A list of extracted fields with their values — and, where it tidied the name, what you called it versus the standard field it became.
   • “No match” if the pattern didn’t fit the line.
   • A note that it matched but captured nothing if the line fit your pattern but you didn’t name any piece of it.
   • A clear error if the pattern itself is malformed.
3. Adjust the pattern until the right fields come out, then Save.

Tip

Grab the sample line straight from Log Search. Testing against an actual message from your environment — not an idealized example — is the surest way to get a pattern that works on the real thing.

Editing and disabling a rule

• Click a rule to edit its name, log type, pattern, or event type.
• Use the Enabled switch to pause a rule without deleting it.
• Use Delete in the editor to remove a rule entirely.

How extracted fields help everywhere else

Where	What named fields give you
Log Search	Filter on a field’s value directly — source IP = …, user = admin — instead of matching raw text.
Detections	Group and count by a field, so rules like “10 failures from one source IP in 5 minutes” become possible.
Cases	Cleaner, field-tagged evidence when you attach log lines to an investigation.

Where to go next

• Search on the fields you extract in Logs & Log Search.
• Build precise rules on top of them in Detections.
• See how logs arrive in the first place in Receiving Syslog & Traps.
